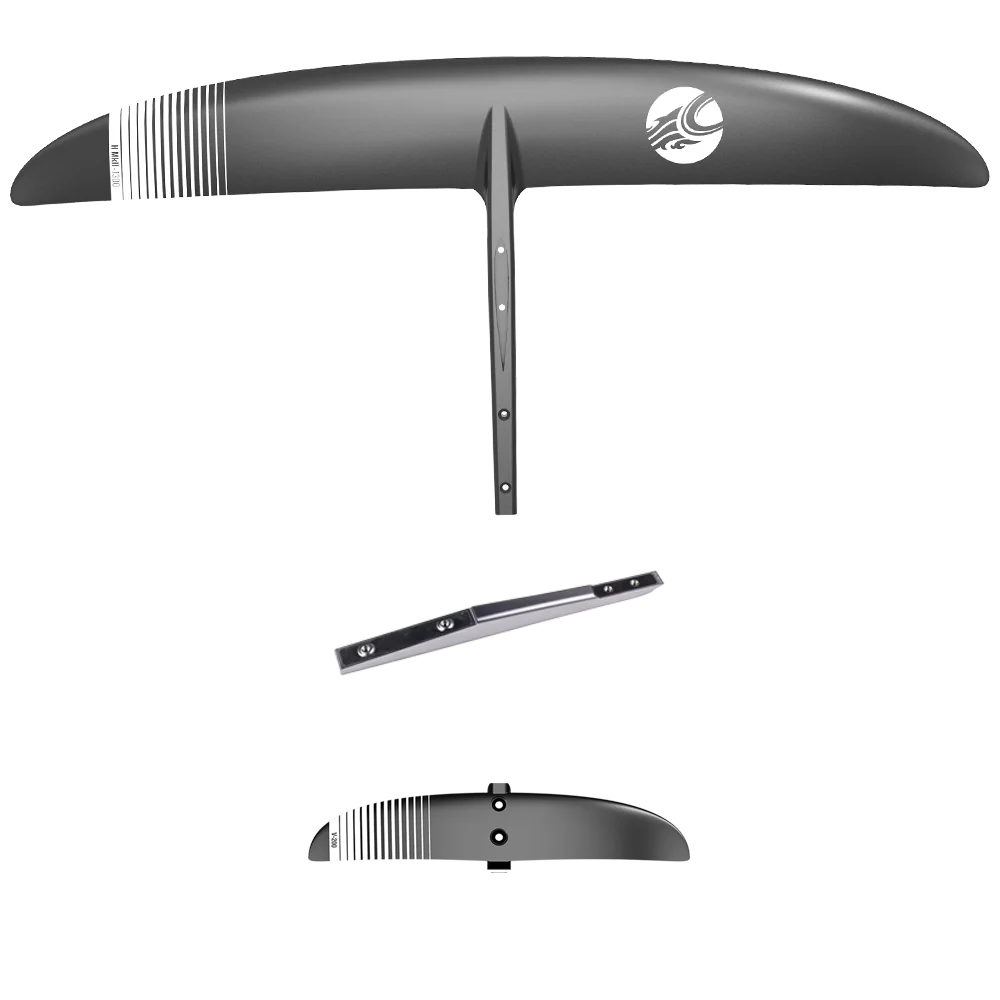

Includes: Wing H1300 / Stabilizer V200 / Fuselage 345MM / Screw Set / T-nut Train / Torx Tool
Just when you thought a product couldn’t get better, the new H-Series MkII pushes into the future of foil design and sets a new benchmark for efficiency and performance. The design team have implemented new technology learnt from the collaboration with Sintef. Water testing in the biggest tank in Europe has refined the H-series tip shape to allow the tips to breach and re-enter without cavitation. This allows more progressive riding and radical turns, be it with a kite, wing or prone. The new leaner profile now boasts an increased speed range which helps entry into freestyle tricks or on the race field. It seamlessly pairs with any of Cabrinha’s V-series stabs and is part of the modular Cab Fusion system.
H1300 FEATURES
Ultra Efficient Design
Ultra Lean Profile
Refined Tip Shape.
Tapered Fit
Increased Torsional Stiffness
High Aspect Ratio
Barrel Nut Secure Connection
Pre Preg Carbon Construction
Modular Design to work with Cab Fusion Products
V200 FEATURES
Optimal efficiency and maneuverability
Flat center, to downward tips, for perfect balance between locked-in feel and agility
Single molded components for minimal drag
Full prepreg carbon construction
PMI core for superior strength to weight ratio
346MM FUSELAGE FEATURES
NEW hollow fuselage for lightweight performance
NEW insulated mounting surfaces for Improved durability and longevity
Helicoils for superior durability and eliminating corrosion
TECH SPECS
H1300 - 1300c m ², WS 1090, AR 9.14, Chord 150mm
V 200 cm², WS-360, AR-6.48
Fuselage(M) 346mm
| Cabrinha Foil Variant | H-Series MKII 550 Wing - V-Series 180 Stabilizer - Fuselage 346mm, H-Series MKII 700 Wing - V-Series 180 Stabilizer - Fuselage 346mm, H-Series 800 Wing - V-Series 180 Stabilizer - Fuselage 346mm, H-Series MKII 850 Wing - V-Series 180 Stabilizer - Fuselage 346mm, H-Series 1000 Wing - V-Series 180 Stabilizer - Fuselage 346mm, H-Series MKII 1050 Wing - V-Series 180 Stabilizer - Fuselage 346mm, H-Series MKII 1300 Wing - V-Series 180 Stabilizer - Fuselage 346mm, H-Series MKII 1300 Wing - V-Series 200 Stabilizer - Fuselage 346mm |
